High Speed Automatic Tube Welding Machine Good Contact Narrow Space Pipe

Name: High Speed Automatic Tube Welding Machine Good Contact Narrow Space Pipe
Brand: Hyzont
Price: 1 USD

Name : U tube TIG Welding Machine

Model : UFH-15

Application : Stainless Steel Condenser U tube Auto Weld Fabricating

Weld Current : Max. 200A

U tube Material : Stainless Steel

U tube Thickness : 1-3mm

Type of Welding : TIG/GWAT (No wire feeding)

Place Origin : China

Brand Name : Hyzont

Model Number : UFH-15

Certification : CCC

Place of Origin : China

MOQ : 1Set

Price : negotiable

Supply Ability : 100 Sets a month

Delivery Time : 3 Days after Payment

Packaging Details : Flight Case

Contact Now

Orbital Welding of Condenser Tubing Automatic tube welding machine

Brand: Hyzont

Model: UFH-15

Application:

A specially designed TIG welding head for automatic welding of stainless steel condenser U-tubes, operating on the same principle as orbital welding.

Condenser U tube welding
Evaporator U tube welding
Heat exchanger fabricating

Features:

Customized design suitable for all types of U-tubes

Quick-install clamps for easy use

Low labor cost with high welding efficiency

Collision-free welding with reliable contact in narrow-space U-tube applications

Heat-resistant components in a compact, light and durable design

Water-circuit cooling design for long-duration operation

Specification:

Model	UFH-15
Material	Carbon steel, Stainless Steel, Titanium Alloy
Tube Fitting	Plugged U tube
Welding Process	TIG/GTAW (no wire feeding)
Tube OD(mm/inch)	12.7-15.88 mm
Tube Wall Thickness(mm)	3 mm
Tungsten OD(mm)	1.6
Rotating	360° free rotation with auto reset; all-position welding
Rotation speed(rpm)	0.3-6
Protective Gas	Argon
Cooling	Water
Cooling Flow(ml/min)	1000 ml/min
Cable Length	6 m
Main Dimension(mm)
Weight(kg)	1 kg
Dimension(mm)	377 x 38 x 100

Detailed Pictures

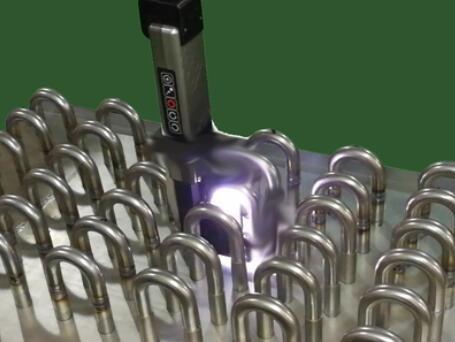

High Speed Automatic Tube Welding Machine Good Contact Narrow Space Pipe

Order information

Order Code	K200150-U
Packing	Flight case
Packing Size	520 x 400 x 200 mm
Packing Weight	13 kg + 23 kg (Welding Power Source OBT-200)
Delivery Time	3 Days after payment
